UL 4389  Flat Cable

                                                DESCRIPTION

UL型号:4389                                     UL STYLE:4389
额定温度:-60°C+150°C/200°C        Rate temperature : -60°C+150°C/200°C

额定电压:600V                                 Rate voltage : 600V

    缘:聚全氧乙丙烯                       InsulationFEP

    被:硅橡胶                                 JacketSilicone

    体:3010AWG镀锡铜线     Conductor30 to 10 AWG Tinned copper

外径容差:±0.10mm                       O.D.Allowance:±0.10mm

    色:黑 绿     AviableBlack Brown Red Orange Yellow Green   黄绿等。                                   Blue Violet Gray White  Green∕Yellowetc.

                                       ELECTRONIC CHARACTERISTICS

耐高温、低温、酸、碱、油、耐燃烧、老化、   High temperature resistancelow temperature

耐候性、防雾以及线的柔软性、电绝缘性、     resistanceanti-acid and alkalifire and aging

满足UL758UL1581RoHs要求              resistancethe inoxid-izabilityresistance of humidity

                                           the fine electric insulation and flexible performance

                                           UL758UL1581 RoHs compliance.

应用                                      APPLICATION

适用于家用电器、照明灯具、电子设备、温    Apply to Household appliancellluminationLighting

度伟感器、航天、航空、军用产品、冶金化    Headlampelectric machinestempurature sensor

工、汽车船舶、电力安装等连接线            Military seriesMetallurgy Chemical series

                                           Motor carsShips Electrical Installation.

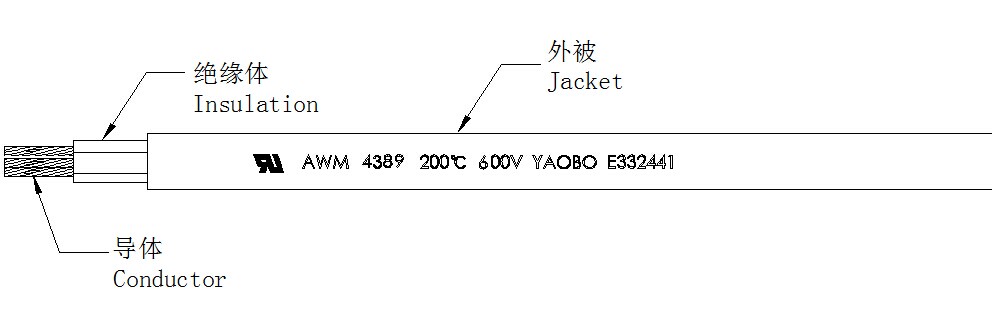

构造  Construction

参数  Construction Table

导体尺寸

Size of conductor

绝缘体

Insulation

电气特性

Electrical Characteristic

包装

Packing

线号

AWG

线数/线径

Composition
(strands/mm)

直径

Diameter

mm

绝缘厚度

THK.
mm

芯线外径 Diameler mm

外被厚度 Jacket THK. mm

完成外经

Over Diameter mm

导体电阻

Condutor Resislance

Ω/KM 20)

允许电流 Permissible ampacity 20-AMR

m∕coils

22x2C

19x1.150

0.76

0.46

1.68

1.14

5.64

54.3

8.73

100

20 x2C

19x0.190

0.96

1.88

6.04

34.6

13.87

100

18 x2C

19x0.235

1.18

2.10

6.48

21.8

22.02

100

16 x2C

19x0.300

1.51

2.43

7.14

13.5

35.05

50

22 x3C

19x0.150

0.76

1.68

5.64

54.3

8.73

100

20 x3C

19x0.190

0.96

1.88

6.04

34.6

13.87

100

18 x3C

19x0.235

1.18

2.10

6.98

21.8

22.02

100

16 x3C

19x0.300

1.51

2.43

7.14

13.5

35.05

50

22 x4C

19x0.150

0.76

1.68

6.16

54.3

8.73

100

20x4C

19x0.190

0.96

1.88

6.62

34.6

13.87

100

18 x4C

19x0.235

1.18

2.10

7.48

21.8

22.02

50

16 x4C

19x0.300

1.51

2.43

7.89

13.5

35.05

50

18 x5C

19x0.235

1.18

2.10

7.70

21.8

22.02

50

18 x6C

19x0.235

1.18

2.10

8.22

21.8

22.02

50

18 x7C

19x0.235

1.18

2.10

8.70

21.8

22.02

50

18 x8C

19x0.235

1.18

2.10

1.52

9.90

21.8

22.02

50
