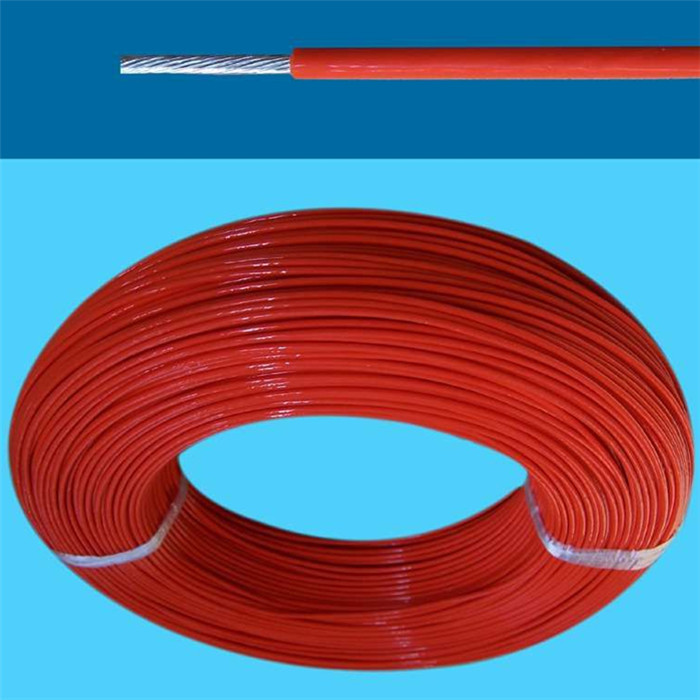

UL 1007 HOOK-UP WIRE
说 明 DESCRIPTION
UL型号：1007 UL STYLE:1007
温度范围：-30°C～+80°C Temperature range : -30°C～+80°C
额 定：80°C 300V Rating : 80°C 300V
绝 缘：聚氯乙烯（PVC） Insulation：PVC
导体材质：镀锡铜 Conductor material：TINNED COPPER
颜 色：白 蓝 红 黑 棕 黄 绿 粉 Aviable：White Blue Red Black Brown Yellow green
pink.
阻燃等级：VW-1及CSAFT1、FT2 Flame test : VW-1 、CSAFT1、FT2
用途 APPLICATION
电气、电子设备的内部配线 Internal wiring for electric or electronic equipment
USAGE
Used for most electronic equipments which require higher current as Jumper wire or shortdistance
connection
构造 Construction
参数 Construction Table
|
导体尺寸 Size of conductor |
绝缘体 Insulation |
导体电阻INSU.RESISTANCE |
标准长度 Unit Length |
|||
|
种类 Type |
线号AWG |
线数/线径Composition |
绝缘厚度Thickness （mm±0.05） |
外径 Diameter （mm） |
Ω/KM(20°C) |
束 Coil （m） |
|
绞线 Stranded |
30 |
7/0.102 |
0.41 |
1.10±0.10 |
114.40 |
610 |
|
28 |
7/0.127 |
1.20±0.10 |
72.00 |
|||
|
26 |
7/0.160 |
1.30±0.10 |
45.20 |
|||
|
24 |
11/0.160 |
1.40±0.10 |
29.30 |
|||
|
22 |
17/0.160 |
1.60±0.10 |
16.70 |
|||
|
20 |
21/0.178 |
1.80±0.10 |
10.50 |
|||
|
18 |
34/0.178 |
2.10±0.10 |
6.64 |
|||
|
16 |
26/0.254 |
2.40±0.10 |
4.18 |
|||
|
TASC |
26 |
7/0.160 |
1.30±0.10 |
42.60 |
||
|
24 |
7/0.203 |
1.40±0.10 |
26.20 |
|||
|
22 |
7/0.254 |
1.60±0.10 |
16.70 |
|||
|
20 |
7/0.310 |
1.80±0.10 |
10.40 |
|||
|
18 |
7/0.404 |
2.10±0.10 |
7.06 |
|||
|
16 |
7/0.488 |
2.30±0.10 |
4.86 |
|||
|
单条 Solid |
26 |
1/0.404 |
1.25±0.10 |
43.53 |
||
|
24 |
1/0.511 |
1.35±0.10 |
27.25 |
|||
|
22 |
1/0.643 |
1.50±0.10 |
16.50 |
|||
|
20 |
1/0.813 |
1.65±0.10 |
10.30 |
|||
|
18 |
1/1.024 |
1.85±0.10 |
6.52 |
|||
|
16 |
1/1.290 |
2.14±0.10 |
4.10 |
|||
备注 NOTE
1、电气特性 1.Electrical properties
最小绝缘电阻（15.6℃时）：10MΩ.km Min.insulation resistance(at15.6℃):10 MΩ.km
耐电压：A.C.2000V/1min. Dielectric withsanding voltage: A.C.2000V/1min.
2、许可导体型号范围：32～16AWG 2.Size range:32 to 16AWG
